PCBA Quality Control
Connect component control, assembly inspection and electrical verification in one project-specific plan. Make every release decision traceable to the approved build.

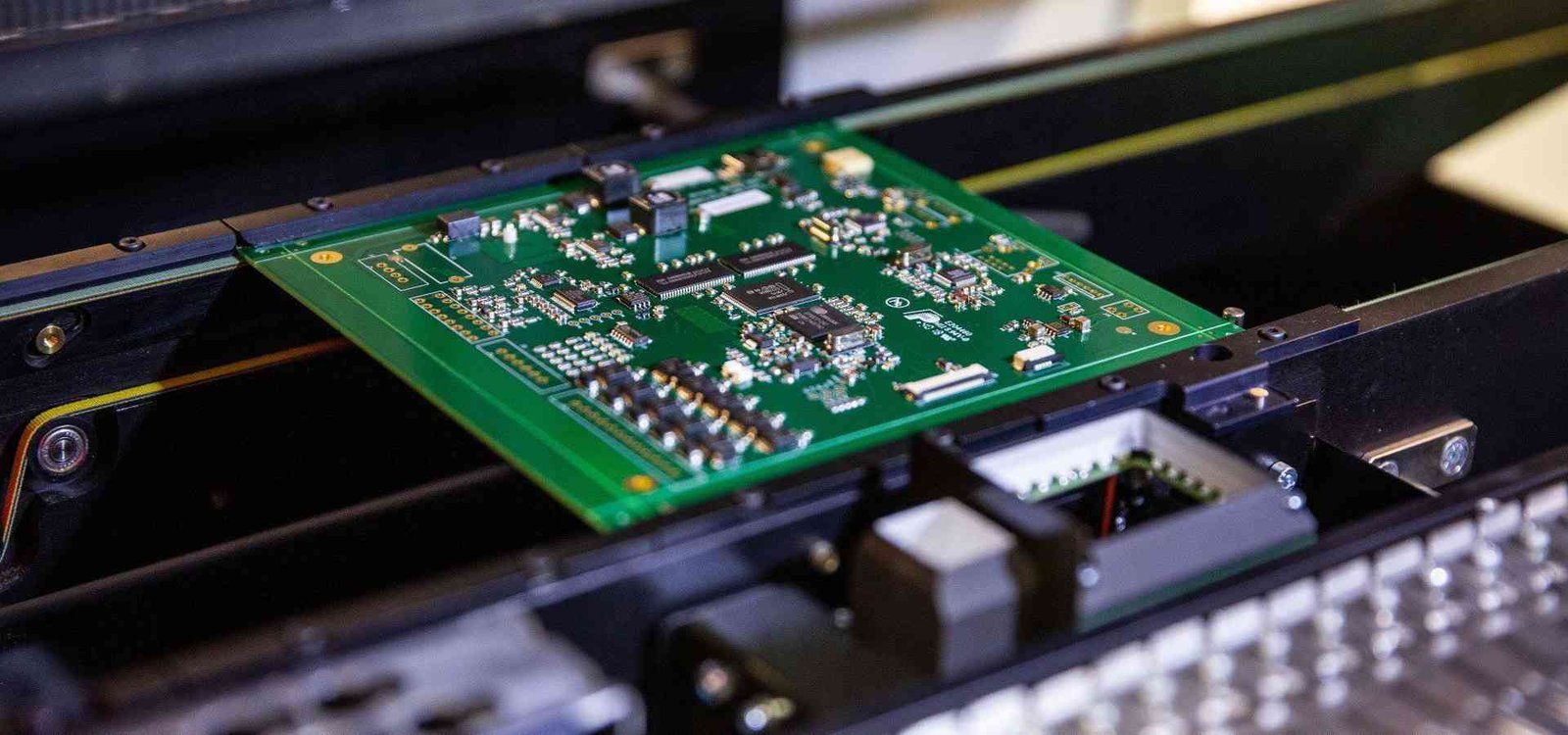

Control the assembly, not only its appearance.
PCBA quality control addresses the populated circuit board: the right parts, the intended assembly process and the required verification. J-STD-001 addresses soldering requirements, while IPC-A-610 addresses assembly acceptability. The agreed revision and application requirements determine how they are used together. [S02]
Prepare the GlobalWellPCB build around a single released BOM and placement package. Then identify the risks that need a separate check—hidden joints, component values, firmware or operation under load—rather than asking one inspection method to prove everything.
Build a layered verification plan.
Agree the methods, coverage and escalation rules before assembly. The following is a planning framework; equipment and included testing are confirmed for the project.
Scroll the table horizontally to see all columns.
| Review area | What to evaluate | What to agree |
|---|---|---|
| Incoming components | Part number, approved source, package and lot information against the released BOM. | Document alternates and substitution approval. |
| Pre-assembly readiness | PCB revision, component orientation, assembly drawing and process instructions. | Resolve BOM/placement conflicts before the line is set up. |
| Paste and placement | Where specified, SPI measures deposits and AOI examines visible assembly features. [S23] [S21] | Define the inspected sites and validated program revision. |
| Hidden-joint inspection | X-ray can reveal otherwise obscured joint structures, subject to imaging geometry. [S25] | Name the packages, views and acceptance criteria. |
| Electrical verification | ICT addresses component/interconnect checks; FCT addresses specified operating behavior. [S27] [S30] | Maintain a list of tested and untested requirements. |
| Final configuration | Firmware, labels, mechanical additions, packing and shipment records. | Tie the final configuration and disposition to the serial or lot identifier. |
Tell us which features need inspection, your sampling requirements and the reports you need. We will confirm these details in your quotation.
From a clear requirement to a documented decision.
- 01
Reconcile the assembly package
Compare BOM, placement coordinates, drawings, polarity notes and revision labels. Close every ambiguity that could change the assembled configuration.
- 02
Approve the inspection route
Select inspections and tests by failure risk. Include hold points, sampling, test access and any fixture development in the project scope.
- 03
Review the initial build
Use an agreed first-article review to examine the released configuration and findings. Define whether customer approval is required before continuing.
- 04
Close the release record
Retain original failures, authorized rework and retest results. Confirm the released firmware and unresolved exceptions before shipment.
Ask for coverage, not just a pass label.
A meaningful assembly record explains which requirements were verified and which remain outside the test plan. Use a simple requirement-to-evidence map during project review.
- Configuration
- PCB, BOM, placement, assembly drawing and firmware versions applicable to the tested units.
- Inspection trail
- Selected SPI/AOI/X-ray records, reviewed findings and any authorized corrections.
- Electrical results
- Test-program and fixture revision, limits, measured values where agreed, and unit-level disposition.
- Exceptions and rework
- Approved deviations, rework instructions, retest scope and final release authorization.
Visual acceptance does not prove powered operation.
A board may look acceptable but still have an incorrect value, configuration or operating response. Equally, a functional pass does not verify every solder joint or establish long-term reliability. Combine the needed methods and leave exclusions visible in the acceptance plan. [S27] [S30]
PCBA Quality Control FAQs
Find answers about inspection methods, reports and approvals before placing your order.
Are AOI, X-ray, ICT and FCT interchangeable?
No. They observe different characteristics: visible features, hidden structures, component/interconnect behavior and specified system operation. Build the coverage map around the requirements rather than the number of machines used. [S21] [S25] [S27] [S30]
Does every assembly order include functional testing?
Do not assume so. Functional testing needs an agreed procedure, accessible interfaces, expected responses and often a fixture or software setup. Confirm development and production-test scope in the quotation.
Can we approve substitute components?
Define an approved-alternate list and an authorization process. Record the exact substituted part and recheck any footprint, process or test requirement affected by the change.
Should reworked units be tested again?
Specify reinspection and retest after authorized rework, including checks for affected neighboring features. Keep the original failure and subsequent disposition together.
What does assembly traceability need to include?
Choose a practical depth: lot or serial identity, configuration revisions, component information where required, test-program versions and release records. Do not assume all records are retained indefinitely.
Can this plan support low-volume builds?
Yes. Start with the same requirement-to-evidence logic, then choose methods and fixtures appropriate to the design, access, risk and order quantity. The scope need not duplicate a high-volume line.
Technical references
- [S02]IPC — J-STD-001 and IPC-A-610 have complementary roles
- [S21]Koh Young — Zenith S 3D AOI
- [S23]Koh Young America — SPI Machine: Buyer’s Checklist
- [S25]Nordson — Automated X-ray Inspection Product Portfolio (PDF)
- [S27]Teradyne — TestStation Systems: In-Circuit & Functional Production Test Platform (PDF)
- [S30]NI — PCB Assembly Test Toolkit
Explore the inspection and testing references below. Include the applicable standards, acceptance criteria and required records with your enquiry so we can confirm the inspection plan for your board.
